PanaVise 870W

PanaVise 870W

CAMERA TREE
Code
870W

PanaVise 870W

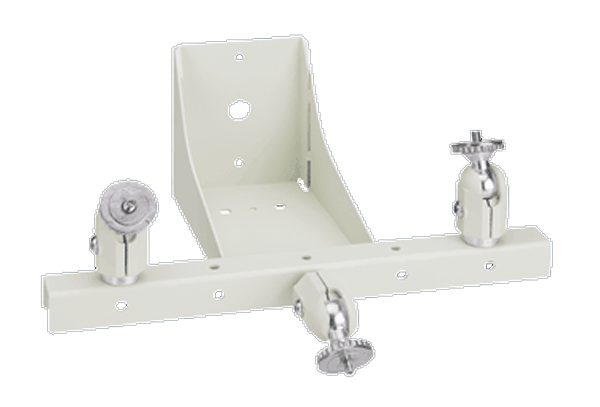

CCTV Camera Tree (Cream). A SINGLE MOUNTING SOLUTION FOR MULTIPLE CAMERAS. Perfect for warehouses and auditoriums, a single mount saves installation time and hassle.

Highlights:

  • Heavy duty, steel construction
  • Includes three adjusting knuckles (1/4-20 studs with lock-rings)
  • Fully adjustable at the cameras (210° Tilt, 360° Turn & 360° Rotation)
  • Distance from wall to center of cross bar is 6.25" (158.8mm)
  • Height of adjusting knuckles is approx. 2.75" (69.8mm)
  • Integral J-Box mounting plate with 0.625" (15.9mm) round cable pass thru hole
  • Knob and tamper-resistant set-screw adjusting options included with each knuckle
  • Cable channel includes tie-down holes. Mount bar is 12" (304.8mm) wide; adjusting knuckles can mount on top or front
  • Add one or two more adjusting knuckles (model no. 851-00)
