Computar CBZ24

Computar CBZ24, Lens Accessories, Zoom Lens Controller-CBZ24 distributed by IVS Imaging Need Assistance Call us @888-446-1301

Code

CBZ24

Description
Documentation

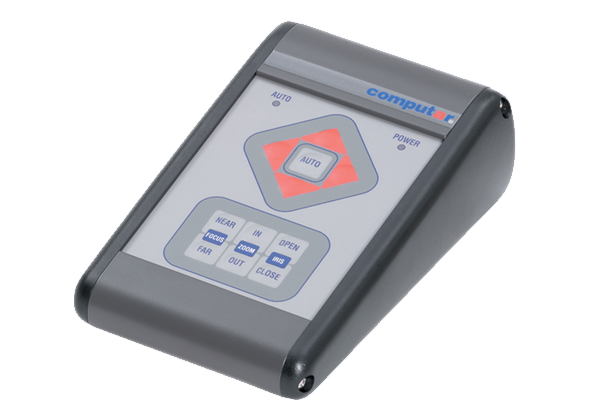

Computar CBZ24

The CBZ-24 is designed to provide remote control for COMPUTAR’s motorized zoom lenses. The unit is designed for simple, hard-wire control applications. Fully solid-state electronics provide DC power to smoothly drive zoom, focus, and iris functions.

Highlights:

Pan & tilt control functions
Six zoom lens control functions
Zoom lens control with polarity inversion or common ground power supply
24VAC pan & tilt motion control
Ease of use
Camera control via 6-pin din jack type interface
Power supply: 24VAC/60 Hz
Power consumption: 4W

Max switching power: 45 W
Operative temperature: 0ºC to 40º
Pan & tilt control voltage: 24VAC/60 Hz
Construction: extruded aluminum with rubber parts
Finish: coated epoxy powder
Dimensions: 115 x 190 x 50 mm or 4.52" x 7.48" x 1.97"
Weight: 900g or 1.98 lbs.

Product Documentation

Spec Sheet

Download

User Manual

Download
