JVC KY-F75U

1/2", Color, 3-CCD, FireWire® A (IEEE-1394), 1360 x 1024
Code
KY-F75U

JVC KY-F75U

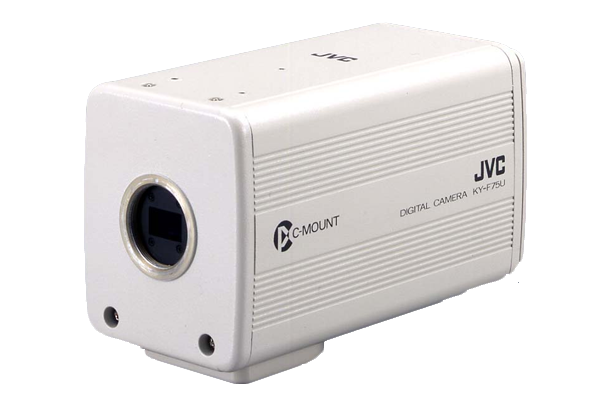

The KY-F75 is a digital camera employing three 1/2-inch CCDs with 1.45 million effective pixels. It outputs signals with 1360 × 1024-pixel resolution. The camera has a built-in DSP for real-time processing of the video signal which is output as a 7.5 frames-per-second RGB digital signal. This enables real-time transfer to personal computer by means of a IEEE1394 host adapter. A built-in IEEE1394 connector enables remote control from personal computer using supplied software. Employment of 1/2-inch C-mount optical system enables connection to various types of optical devices. Recording in the near-infrared region can be accomplished by replacing the optical filter (sold separately.)

The KY-F75 can be remote-controlled from a personal computer, and the live image can be shown on the computer monitor. Still images can be captured on the PC. The following is an example of a system using lenses (other than the motorized lens.)

Highlights:

  • 4.3 million effective square pixels
  • Greater than SXGA resolution, having 1360 x 1024 pixels
  • Progressive scan CCD output
  • RGB prism separator and 3-CCD for total colour accuracy
  • Direct digital interface to PC via IEEE 1394
  • IIDC v1.3 subset of IEEE 1394 for uncompressed data transmission
  • Live image preview on PC monitor and instantaneous capture
  • Long duration image integration mode (slow shutter)
  • Designed to accommodate applications using IR lighting

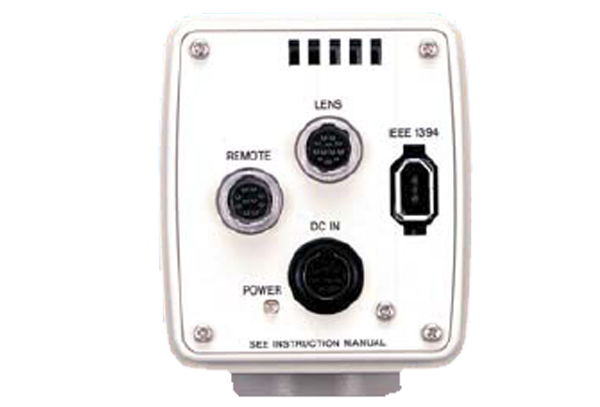

  • Single cable 6pin IEEE 1394 connection, carrying DC power, image and control signals
  • EN60601-1 medical approval when used with separate AA-P700 power adaptor
  • Bundled with new JVC proprietary KY-LINK image acquisition and control software
  • Turnkey solutions available, incorporating IEEE 1394 card & accessories
